Steering Box disassembly

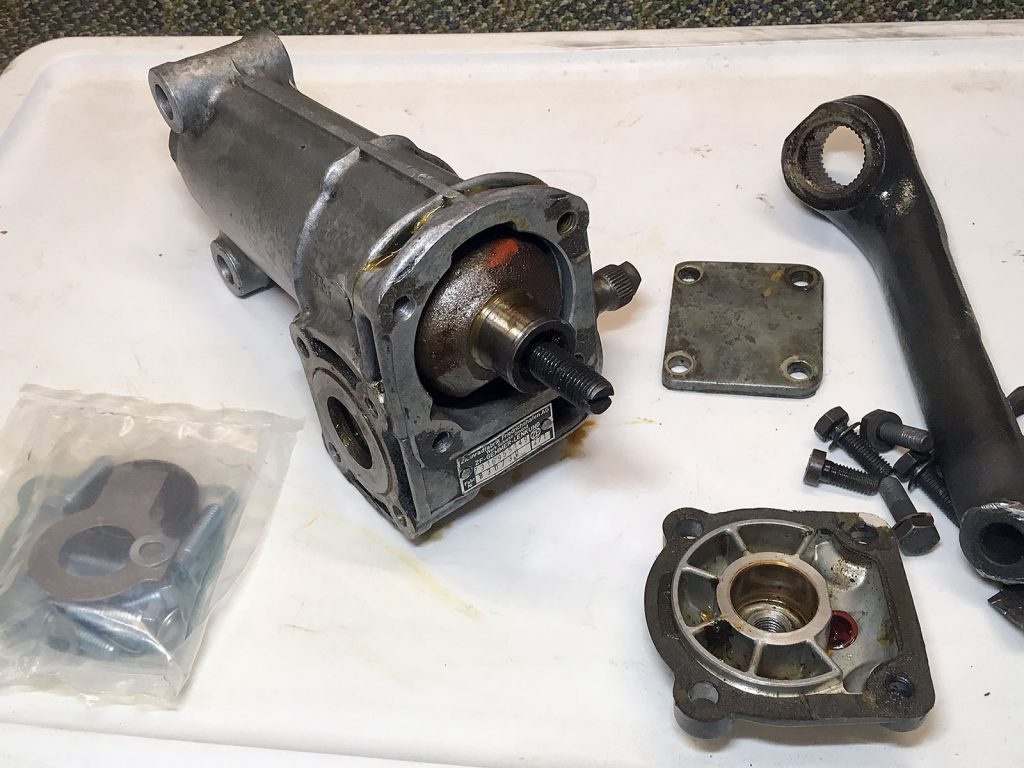

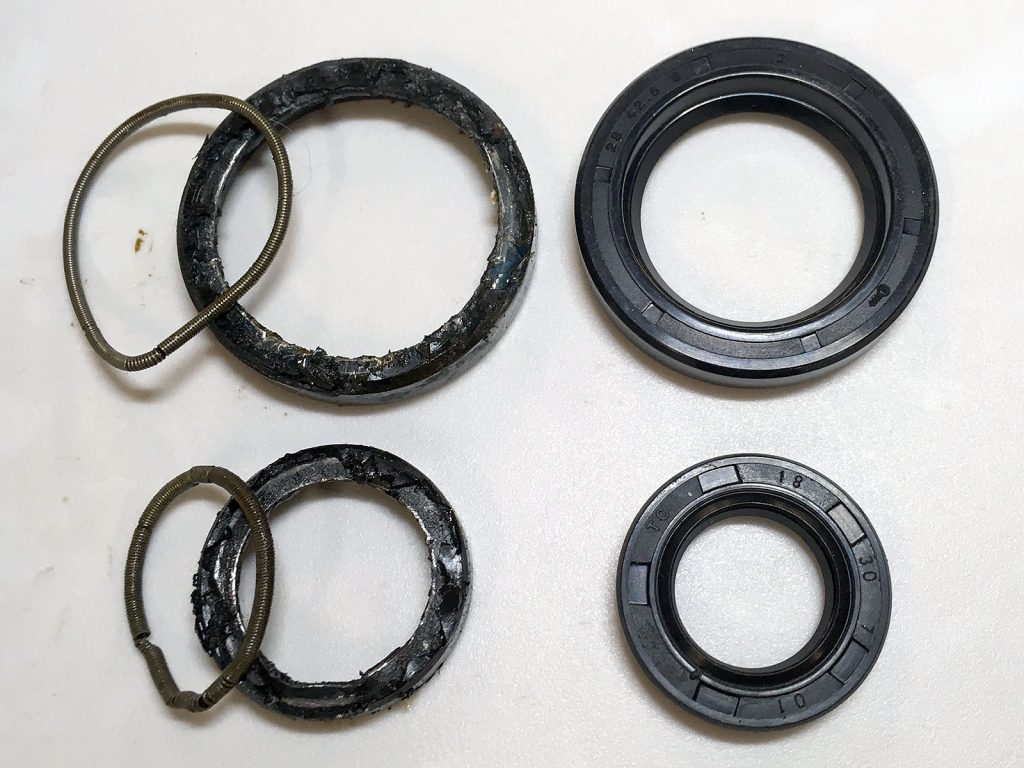

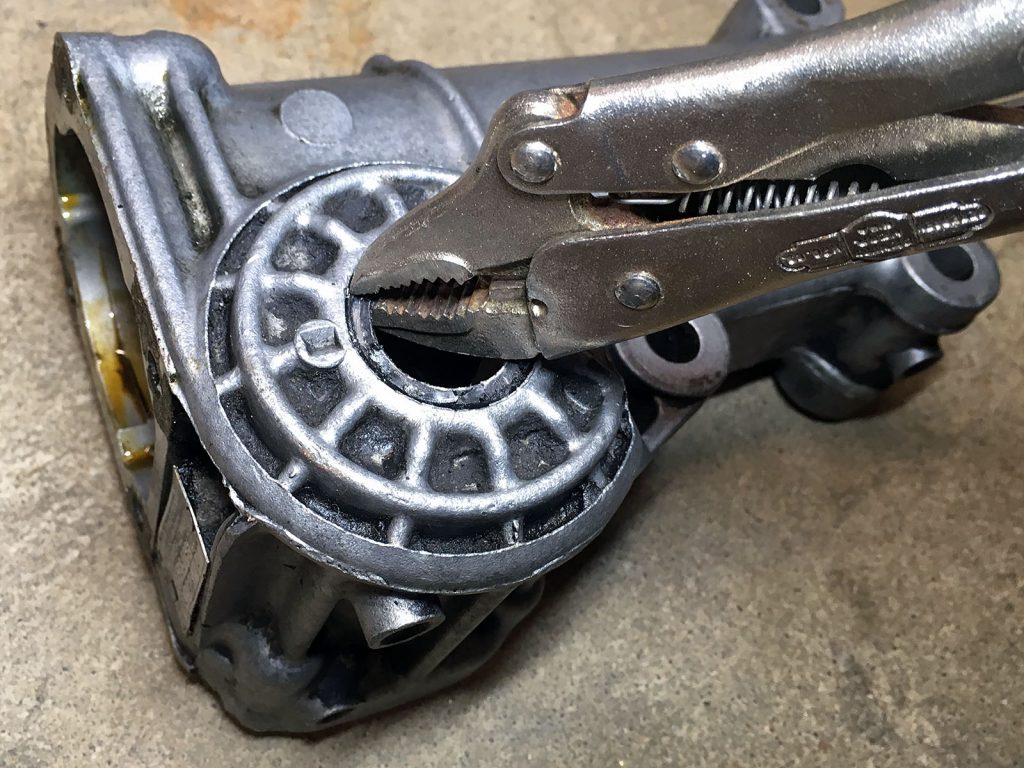

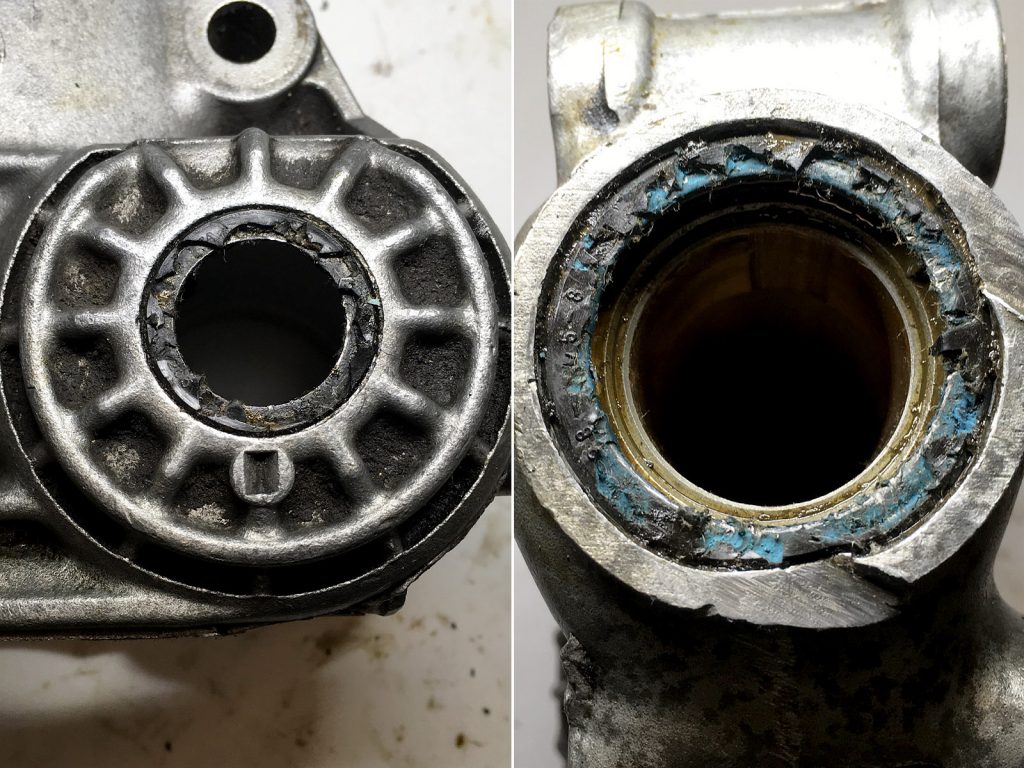

Disassembling the steering box required the use of a pneumatic pickle fork to hammer off the pitman arm. Then, while trying to remove the two seals, I was (unintentionally) trying to tear apart the seals instead of removing them; oops. I had read about the metal inside the seals and had removed those—but I had removed only the springs, not the frames. Once I understood this, I simply yanked the seals out with Vise-Grips. Now on to the soaking and cleaning of all of the bits…
